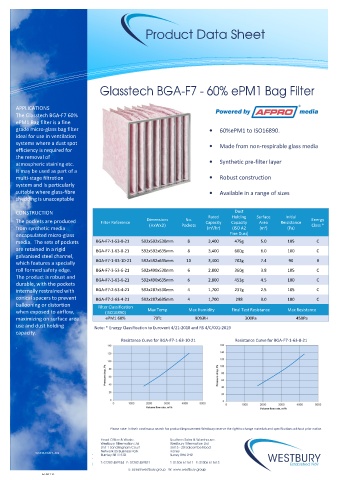

Page 31 - Westbury Filtermation Catalogue

Product Data Sheet

Glasstech BGA-F7 - 60% ePM1 Bag Filter

APPLICATIONS
The Glasstech BGA-F7 60%
ePM1 Bag filter is a fine
grade micro-glass bag filter • 60%ePM1 to ISO16890.
ideal for use in ventilation
systems where a dust spot • Made from non-respirable glass media
efficiency is required for
the removal of
atmospheric staining etc. • Synthetic pre-filter layer
It may be used as part of a
multi-stage filtration • Robust construction
system and is particularly
suitable where glass-fibre • Available in a range of sizes
shedding is unacceptable

CONSTRUCTION Dust
Rated Holding Surface Initial
The pockets are produced Filter Reference Dimensions No. Capacity Capacity Area Reisistance Energy
2
from synthetic media (HxWxD) Pockets (m /hr) (ISO A2 (m ) (Pa) Class *
3
encapsulated micro-glass Fine Dust)
media. The sets of pockets BGA-F7-1-53-8-21 592x592x530mm 8 3,400 475g 5.0 105 C
are retained in a rigid BGA-F7-1-63-8-21 592x592x635mm 8 3,400 600g 6.0 100 C
galvanised steel channel,
which features a specially BGA-F7-1-63-10-21 592x592x635mm 10 3,400 702g 7.4 90 B
roll formed safety edge. BGA-F7-3-53-6-21 592x490x530mm 6 2,800 360g 3.8 105 C
The product is robust and
BGA-F7-3-63-6-21 592x490x635mm 6 2,800 453g 4.5 100 C
durable, with the pockets
internally restrained with BGA-F7-2-53-4-21 592x287x530mm 4 1,700 237g 2.5 105 C
conical spacers to prevent BGA-F7-2-63-4-21 592x287x635mm 4 1,700 298 3.0 100 C
ballooning or distortion Filter Classification
when exposed to airflow, (ISO16890) Max Temp Max Humidity Final Test Resistance Max Resistance
0
maximizing on surface area ePM1 60% 70 c 90%RH 300Pa 450Pa
use and dust holding
Note: * Energy Classification to Eurovent 4/21-2018 and RS 4/C/001-2019
capacity.
Resistance Curve for BGA-F7-1-63-10-21 Resistance Curve for BGA-F7-1-63-8-21
.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-BGAF7--002

Ref: DST-T-V1
