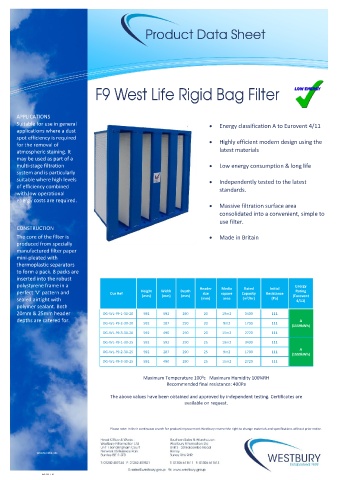

Page 36 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for use in general
• Energy classification A to Eurovent 4/11
applications where a dust
spot efficiency is required
for the removal of • Highly efficient modern design using the
atmospheric staining. It latest materials
may be used as part of a
multi-stage filtration • Low energy consumption & long life
system and is particularly
suitable where high levels • Independently tested to the latest
of efficiency combined standards.
with low operational
energy costs are required.
• Massive filtration surface area
consolidated into a convenient, simple to
use filter.
CONSTRUCTION
The core of the filter is • Made in Britain
produced from specially
manufactured filter paper
mini-pleated with
thermoplastic separators
to form a pack. 8 packs are
inserted into the robust
polystyrene frame in a Header Media Rated Initial Energy
perfect ‘V’ pattern and Our Ref Height Width Depth size square Capacity Resistance Rating
(mm) (mm) (mm) (Eurovent
3
sealed airtight with (mm) area (m /hr) (Pa) 4/11)
polymer sealant. Both
20mm & 25mm header OG-WL-F9-1-30-20 592 592 290 20 19m2 3400 111
depths are catered for. A
OG-WL-F9-2-30-20 592 287 290 20 9m2 1700 111
(1559kWh)

OG-WL-F9-3-30-20 592 490 290 20 15m2 2720 111
OG-WL-F9-1-30-25 592 592 290 25 19m2 3400 111
A
OG-WL-F9-2-30-25 592 287 290 25 9m2 1700 111
(1559kWh)
OG-WL-F9-3-30-25 592 490 290 25 15m2 2720 111

0
Maximum Temperature 100 c Maximum Humidity 100%RH
Recommended final resistance: 400Pa

The above values have been obtained and approved by independent testing. Certificates are
available on request.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
The above values have been obtained and approved by independent testing.
Doc Certificates are available on request.

WDATA-F9RB-001

Ref: DST-T-V1
