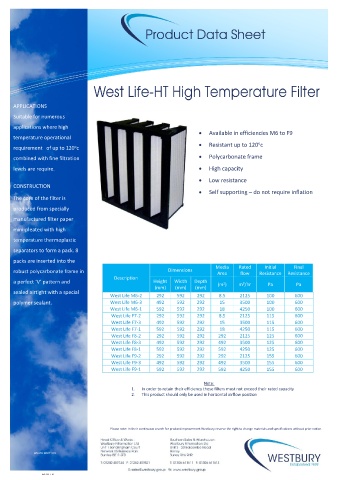

Page 37 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for numerous

applications where high
• Available in efficiencies M6 to F9
temperature operational
o
• Resistant up to 120 c
o
requirement of up to 120 c
combined with fine filtration • Polycarbonate frame
levels are require. • High capacity

• Low resistance
CONSTRUCTION
• Self supporting – do not require inflation
The core of the filter is

produced from specially

manufactured filter paper
mini-pleated with high
temperature thermoplastic
separators to form a pack. 8

packs are inserted into the
Media Rated Initial Final
robust polycarbonate frame in Dimensions Area flow Resistance Resistance
Description
a perfect ‘V’ pattern and Height Width Depth (m ) m³/hr Pa Pa
2
(mm) (mm) (mm)
sealed airtight with a special
West Life M6-2 292 592 292 8.5 2125 100 600
polymer sealant. West Life M6-3 492 592 292 15 3500 100 600
West Life M6-1 592 592 292 18 4250 100 600

West Life F7-2 292 592 292 8.5 2125 115 600
West Life F7-3 492 592 292 15 3500 115 600
West Life F7-1 592 592 292 18 4250 115 600
West Life F8-2 292 592 292 292 2125 125 600
West Life F8-3 492 592 292 492 3500 125 600
West Life F8-1 592 592 292 592 4250 125 600
West Life F9-2 292 592 292 292 2125 155 600
West Life F9-3 492 592 292 492 3500 155 600
West Life F9-1 592 592 292 592 4250 155 600

Note:
1. In order to retain their efficiency these filters must not exceed their rated capacity
2. This product should only be used in horizontal airflow position

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-WLHT-001

Ref: DST-T-V1
