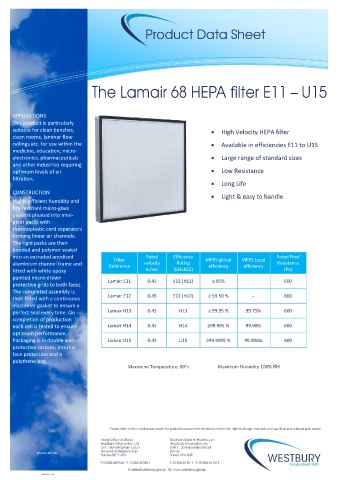

Page 40 - Westbury Filtermation Catalogue

APPLICATIONS
This product is particularly
suitable for clean benches,
• High Velocity HEPA filter
clean rooms, laminar flow
ceilings etc. for use within the • Available in efficiencies E11 to U15
medicine, education, micro-
electronics, pharmaceuticals • Large range of standard sizes
and other industries requiring
optimum levels of air • Low Resistance
filtration.
• Long Life
CONSTRUCTION
• Light & easy to handle
Highly efficient humidity and
fire resistant micro-glass • Individually Tested & Certified
paper is pleated into mini-
pleat packs with • Suits numerous applications
thermoplastic cord separators
forming linear air channels. • Protective grids fitted as standard
The rigid packs are then
bonded and polymer sealed
into an extruded anodised Filter Rated Efficiency MPPS global MPPS Local Rated Final
aluminium channel frame and velocity Rating Resistance
Reference efficiency efficiency
fitted with white epoxy m/sec (EN1822) (Pa)
painted micro-drawn
Lamair E11 0.45 E11 (H11) ≥ 95% - 600
protective grids to both faces.
The completed assembly is
then fitted with a continuous Lamair E12 0.45 E12 (H12) ≥ 99.50 % - 600
elastomer gasket to ensure a
perfect seal every time. On Lamair H13 0.45 H13 ≥ 99.95 % 99.75% 600
completion of production
each cell is tested to ensure Lamair H14 0.45 H14 ≥99.995 % 99.98% 600
optimum performance.
Packaging is in double wall Lamair U15 0.45 U15 ≥99.9995 % 99.998% 600
protective cartons, internal
face protection and a
polythene bag.
Maximum Temperature: 80c Maximum Humidity 100% RH

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-L68H-001

Ref: DST-T-V1
