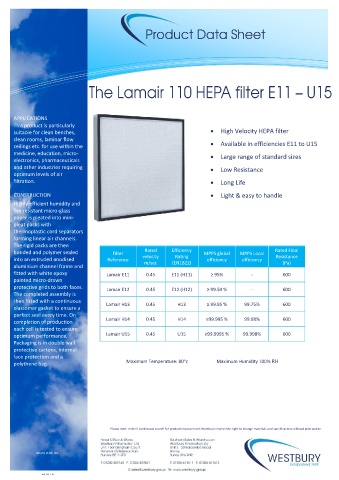

Page 44 - Westbury Filtermation Catalogue

APPLICATIONS
This product is particularly
suitable for clean benches, • High Velocity HEPA filter
clean rooms, laminar flow
ceilings etc. for use within the • Available in efficiencies E11 to U15
medicine, education, micro- • Large range of standard sizes
electronics, pharmaceuticals
and other industries requiring • Low Resistance
optimum levels of air
filtration. • Long Life

CONSTRUCTION • Light & easy to handle
Highly efficient humidity and
fire resistant micro-glass • Individually Tested & Certified
paper is pleated into mini- • Suits numerous applications
pleat packs with
thermoplastic cord separators • Protective grids fitted as standard
forming linear air channels.
The rigid packs are then
bonded and polymer sealed Filter Rated Efficiency MPPS global MPPS Local Rated Final
into an extruded anodised Reference velocity Rating efficiency efficiency Resistance
m/sec (EN1822) (Pa)
aluminium channel frame and
fitted with white epoxy Lamair E11 0.45 E11 (H11) ≥ 95% - 600
painted micro-drawn
protective grids to both faces. Lamair E12 0.45 E12 (H12) ≥ 99.50 % - 600
The completed assembly is
then fitted with a continuous
Lamair H13 0.45 H13 ≥ 99.95 % 99.75% 600
elastomer gasket to ensure a
perfect seal every time. On
completion of production Lamair H14 0.45 H14 ≥99.995 % 99.98% 600
each cell is tested to ensure
optimum performance. Lamair U15 0.45 U15 ≥99.9995 % 99.998% 600
Packaging is in double wall
protective cartons, internal
face protection and a
Maximum Temperature: 80c Maximum Humidity 100% RH
polythene bag.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-L110H-001

Ref: DST-T-V1
