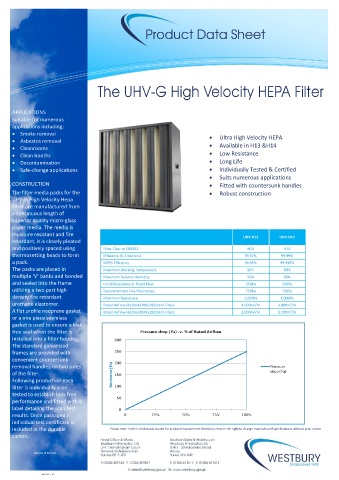

Page 48 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for numerous
applications including:
• Smoke removal • Ultra High Velocity HEPA
• Asbestos removal
• Available in H13 &H14
• Cleanrooms
• Clean booths • Low Resistance
• Decontamination • Long Life
• Safe-change applications • Individually Tested & Certified
• Suits numerous applications
CONSTRUCTION • Fitted with countersunk handles
The filter media packs for the • Robust construction
UHV-G High Velocity Hepa
Filter are manufactured from
a continuous length of
superior quality micro-glass
paper media. The media is
moisture resistant and fire UHV-H13 UHV-H14
retardant, it is closely pleated
and positively spaced using Filter Class to EN1822 H13 H14
thermosetting beads to form Efficiency (0.3 microns) 99.97% 99.99%
a pack. MPPS Efficiency 99.95% 99.995%
The packs are placed in Maximum Working Temperature 90 c 90 c
0
0
multiple ‘V’ banks and bonded Maximum Relative Humidity 90% 90%
and sealed into the frame Initial Resistance at Rated Flow 250Pa 250Pa
utilizing a two part high Recommended Final Resistance 750Pa 750Pa
density fire retardant Maximum Resistance 1,000Pa 1,000Pa
urethane elastomer. Rated Airflow (610Hx610Wx292Dmm Filter) 4,000m /hr 3,400m /hr
3
3
A flat profile neoprene gasket Rated Airflow (610Hx305Wx292Dmm Filter) 2,000m /hr 1,700m /hr
3
3
or a one piece seamless
gasket is used to ensure a leak
free seal when the filter is
installed into a filter housing.
The standard galvanized
frames are provided with
convenient countersunk
removal handles on two sides
of the filter.
Following production each
filter is individually scan
tested to establish leak free
performance and fitted with a
label detailing the scan test
results. Once packaged n
individual test certificate is
included in the durable Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.

Doc carton.

WDATA-UHVG-001

Ref: DST-T-V1
