Technical Information

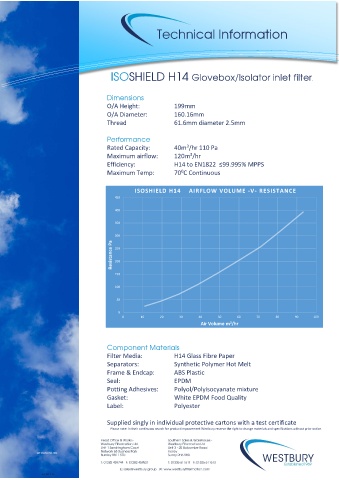

SOSHIELD H14 Glovebox/Isolator inlet filter.
Dimensions
O/A Height: 199mm
O/A Diameter: 160.16mm
Thread 61.6mm diameter 2.5mm
Performance
3
Rated Capacity: 40m /hr 110 Pa
3
Maximum airflow: 120m /hr
Efficiency: H14 to EN1822 ≤99.995% MPPS
Maximum Temp: 70 C Continuous
0
ISOSHIELD H14 AIRFLOW VOLUME -V- RESISTANCE
450
400
350
300
250
Resistance Pa
200
150
100
50
0
0 10 20 30 40 50 60 70 80 90 100
Air Volume m /hr
3
Component Materials
Filter Media: H14 Glass Fibre Paper
Separators: Synthetic Polymer Hot Melt
Frame & Endcap: ABS Plastic
Seal: EPDM
Potting Adhesives: Polyol/Polyisocyanate mixture
Gasket: White EPDM Food Quality
Label: Polyester
Supplied singly in individual protective cartons with a test certificate
Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc
WF DATA ISO-001
Ref: DST-T-V1
