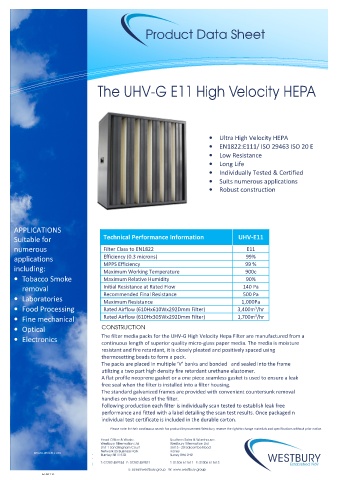

Product Data Sheet

The UHV-G E11 High Velocity HEPA

• Ultra High Velocity HEPA
• EN1822:E111/ ISO 29463 ISO 20 E
• Low Resistance
• Long Life
• Individually Tested & Certified
• Suits numerous applications
• Robust construction

APPLICATIONS
Suitable for Technical Performance Information UHV-E11
numerous Filter Class to EN1822 E11
applications Efficiency (0.3 microns) 99%
MPPS Efficiency 99 %
including: Maximum Working Temperature 900c
• Tobacco Smoke Maximum Relative Humidity 90%

removal Initial Resistance at Rated Flow 140 Pa
Recommended Final Resistance 500 Pa
• Laboratories Maximum Resistance 1,000Pa
• Food Processing Rated Airflow (610Hx610Wx292Dmm Filter) 3,400m /hr
3
3
• Fine mechanical Rated Airflow (610Hx305Wx292Dmm Filter) 1,700m /hr
• Optical CONSTRUCTION
The filter media packs for the UHV-G High Velocity Hepa Filter are manufactured from a
• Electronics
continuous length of superior quality micro-glass paper media. The media is moisture
resistant and fire retardant, it is closely pleated and positively spaced using
thermosetting beads to form a pack.
The packs are placed in multiple ‘V’ banks and bonded and sealed into the frame
utilizing a two part high density fire retardant urethane elastomer.
A flat profile neoprene gasket or a one piece seamless gasket is used to ensure a leak
free seal when the filter is installed into a filter housing.
The standard galvanized frames are provided with convenient countersunk removal
handles on two sides of the filter.
Following production each filter is individually scan tested to establish leak free
performance and fitted with a label detailing the scan test results. Once packaged n
individual test certificate is included in the durable carton.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-UHVGE11 -001

Ref: DST-T-V1
