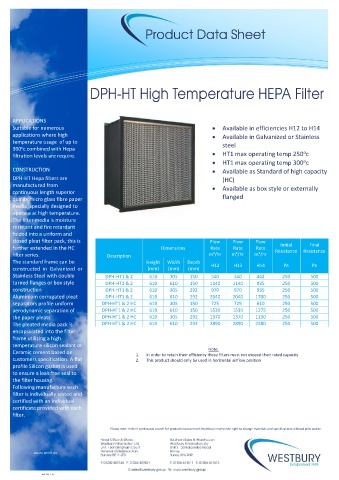

Page 46 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for numerous • Available in efficiencies H12 to H14
applications where high • Available in Galvanized or Stainless
temperature usage of up to steel
o
300 c combined with Hepa o
filtration levels are require. • HT1 max operating temp 250 c
o
• HT1 max operating temp 300 c
CONSTRUCTION • Available as Standard of high capacity
DPH-HT Hepa filters are (HC)
manufactured from • Available as box style or externally
continuous length superior
quality micro glass fibre paper flanged
media, specially designed to • Individually Tested & certified
operate at high temperature.
The filter media is moisture
resistant and fire retardant
folded into a uniform and
closed pleat filter pack, this is Flow Flow Flow
Final
Initial
further extended in the HC Dimensions Rate Rate Rate Resistance Resistance
filter series. Description m³/hr m³/hr m³/hr
The standard frame can be Height Width Depth H12 H13 H14 Pa Pa
constructed in Galvanized or (mm) (mm) (mm)
Stainless Steel with double DPH-HT1 & 2 610 305 150 540 540 442 250 500
turned flanges or box style DPH-HT1 & 2 610 610 150 1140 1140 935 250 500
construction DPH-HT1 & 2 610 305 292 970 970 935 250 500
Aluminium corrugated pleat DPH-HT1 & 2 610 610 292 2040 2040 1700 250 500
separators profile uniform DPH-HT1 & 2 HC 610 305 150 725 725 610 250 500
aerodynamic separation of DPH-HT1 & 2 HC 610 610 150 1530 1530 1275 250 500
the paper pleats. DPH-HT1 & 2 HC 610 305 292 1370 1370 1130 250 500
The pleated media pack is DPH-HT1 & 2 HC 610 610 292 2890 2890 2380 250 500
encapsulated into the filter
frame utilizing a high
temperature silicon sealant or
Note:
Ceramic cement based on 1. In order to retain their efficiency these filters must not exceed their rated capacity
customers specification. A flat 2. This product should only be used in horizontal airflow position
profile Silicon gasket is used
to ensure a leak free seal to
the filter housing.
Following manufacture each
filter is individually tested and
certified with an individual
certificate provided with each
filter.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.

Doc

WDATA-DPHHT-001

Ref: DST-T-V1
