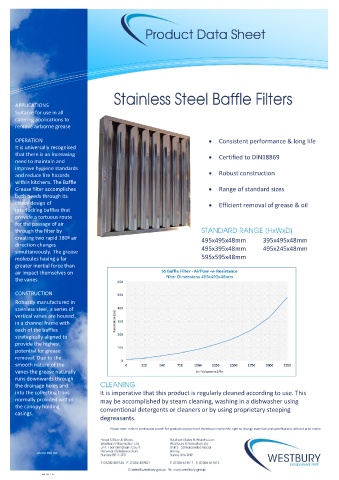

Page 54 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for use in all
catering applications to
remove airborne grease

OPERATION • Consistent performance & long life
It is universally recognised
that there is an increasing • Certified to DIN18869
need to maintain and
improve hygiene standards
and reduce fire hazards • Robust construction
within kitchens. The Baffle
Grease filter accomplishes • Range of standard sizes
both needs through its
clever design of • Efficient removal of grease & oil
interlocking baffles that
provide a tortuous route
for the passage of air
through the filter by )
creating two rapid 180º air 495x495x48mm 395x495x48mm
direction changes 495x395x48mm 495x245x48mm
simultaneously. The grease
molecules having a far 595x595x48mm
greater inertial force than
air impact themselves on
the vanes

CONSTRUCTION
Robustly manufactured in
stainless steel, a series of
vertical vanes are housed
in a channel frame with
each of the baffles
strategically aligned to
provide the highest
potential for grease
removal. Due to the
smooth nature of the
vanes the grease naturally
runs downwards through
the drainage holes and
into the collecting trays It is imperative that this product is regularly cleaned according to use. This
normally provided within may be accomplished by steam cleaning, washing in a dishwasher using
the canopy holding conventional detergents or cleaners or by using proprietary steeping
casings.
degreasants.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-SSBF-001

Ref: DST-T-V1
