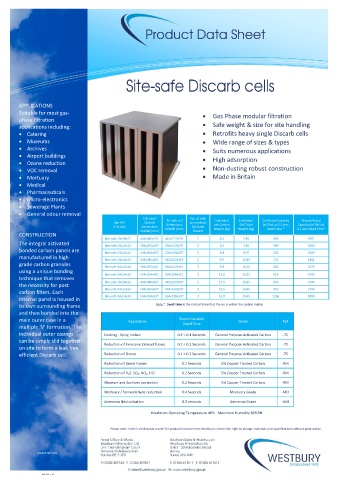

Page 59 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for most gas- • Gas Phase modular filtration
phase filtration
applications including: • Safe weight & size for site handling
• Catering • Retrofits heavy single Discarb cells
• Museums • Wide range of sizes & types
• Archives • Suits numerous applications
• Airport buildings
• High adsorption
• Ozone reduction
• Non-dusting robust construction
• VOC removal
• Mortuary • Made in Britain
• Medical
• Pharmaceuticals
• Micro-electronics
• Sewerage Plants
• General odour removal
Full sized No. of cells
Our Ref Discarb Tri-safe cell to construct Individual Individual Cell Rated Capacity Discarb Rated
3
3
(Full set) dimensions Dimensions full sized cell Carbon Cell Total (m /hr) at 0.1 secs Capacity (m /hr) at
HxWxD (mm) HxWxD (mm) Discarb Weight (kg) Weight (kg) dwell time * 0.1 secs dwell time*
CONSTRUCTION
Site-safe 18x18x12 445x445x297 445x222x297 2 6.5 7.85 495 990
The integral activated
Site-safe 24x12x12 594x295x297 594x147x297 2 6.5 7.85 990 1980
bonded carbon panels are
Site-safe 24x24x12 594x594x297 594x198x297 3 8.4 9.70 633 1900
manufactured in high
Site-safe 18x18x18 445x445x451 445x222x451 2 9.5 10.85 722 1444
grade carbon granules
Site-safe 24x12x18 594x295x451 594x147x451 2 9.0 10.35 685 1370
using a unique bonding
Site-safe 24x24x18 594x594x451 594x198x451 3 12.0 13.35 915 2745
technique that removes
Site-safe 18x18x24 445x445x597 445x222x597 2 12.5 13.85 950 1700
the necessity for post
Site-safe 24x12x24 594x295x597 594x147x597 2 12.5 13.85 950 1700
carbon filters. Each
Site-safe 24x24x24 594x594x597 594x198x597 3 16.9 19.45 1266 3800
internal panel is housed in
its own surrounding frame Note * Dwell time is the contact time that the air is within the carbon matrix
and then bonded into the
main outer case in a Application Recommended Grade Ref
Dwell Time
multiple ‘V’ formation. The
individual outer casings Cooking - Spicy, Indian 0.2 < 0.4 Seconds General Purpose Activated Carbon -7C
can be simply slid together
Reduction of Kerosene Exhaust fumes 0.1 < 0.2 Seconds General Purpose Activated Carbon -7C
on site to form a leak free
efficient Discarb cell. Reduction of Ozone 0.1 < 0.2 Seconds General Purpose Activated Carbon -7C
Reduction of Diesel Fumes 0.2 Seconds 5% Copper Treated Carbon -9M
Reduction of H 2S, SO 2, NO 2, HCl 0.2 Seconds 5% Copper Treated Carbon -9M
Museum and Archives protection 0.2 Seconds 5% Copper Treated Carbon -9M
Mortuary / formaldehyde reduction 0.4 Seconds Mortuary Grade -MO
Ammonia Neutralisation 0.3 seconds Ammonia Grade -AM
o
Maximum Operating Temperature 40 c Maximum Humidity 80%RH

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-SDC-001

Ref: DST-T-V1
