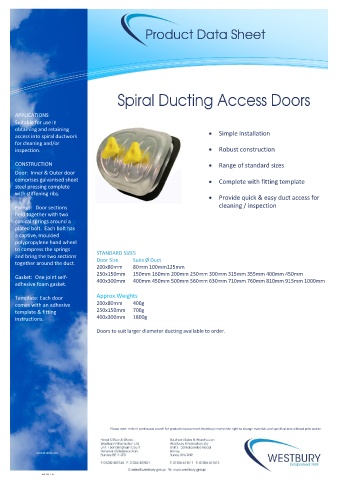

Page 63 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for use in
obtaining and retaining
access into spiral ductwork • Simple installation
for cleaning and/or
inspection. • Robust construction

CONSTRUCTION • Range of standard sizes
Door: Inner & Outer door
comprises galvanised sheet • Complete with fitting template
steel pressing complete
with stiffening ribs. • Provide quick & easy duct access for

Fixings: Door sections cleaning / inspection
held together with two
conical springs around a
plated bolt. Each bolt has
a captive, moulded
polypropylene hand wheel
to compress the springs STANDARD SIZES
and bring the two sections
together around the duct. Door Size Suits Ø Duct
200x80mm 80mm 100mm125mm
Gasket: One joint self- 250x150mm 150mm 160mm 200mm 250mm 300mm 315mm 355mm 400mm 450mm
400mm 450mm 500mm 560mm 630mm 710mm 760mm 810mm 915mm 1000mm
400x300mm
adhesive foam gasket.

Template: Each door Approx.Weights
comes with an adhesive 200x80mm 400g
template & fitting 250x150mm 700g
instructions. 400x300mm 1800g

Doors to suit larger diameter ducting available to order.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
