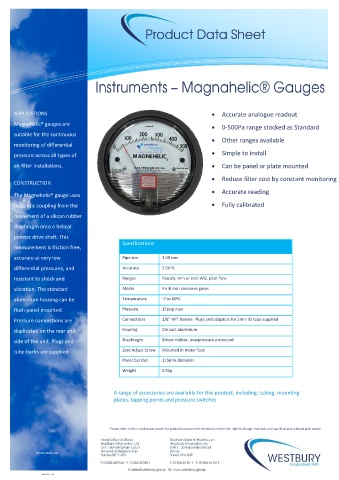

Page 65 - Westbury Filtermation Catalogue

APPLICATIONS • Accurate analogue readout
Magnahelic® gauges are
• 0-500Pa range stocked as Standard
suitable for the continuous
• Other ranges available
monitoring of differential
• Simple to install
pressure across all types of
air filter installations. • Can be panel or plate mounted

• Reduce filter cost by constant monitoring
CONSTRUCTION
• Accurate reading
The Magnehelic® gauge uses
magnetic coupling from the • Fully calibrated

movement of a silicon rubber
diaphragm onto a helical
pointer drive shaft. This
Specifications
measurement is friction free,

accurate at very low Pipe size 3.00 mm
differential pressures, and Accuracy 2.00 %
resistant to shock and Ranges Pascals, mm or inch WG, pitot flow

vibration. The standard Media Air & non corrosive gases
aluminium housing can be Temperature -7 to 60ºC
flush panel mounted. Pressure 15psig max

Pressure connections are Connections 1/8" NPT female. Plugs and adaptors for 5mm ID tube supplied
duplicated on the rear and Housing Die cast aluminium
side of the unit. Plugs and Diaphragm Silicon rubber, overpressure protected

tube barbs are supplied. Zero Adjust Screw Mounted in meter face
Panel Cut Out 115mm diameter
Weight 0.5kg

A range of accessories are available for this product, including; tubing, mounting
plates, tapping points and pressure switches

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
