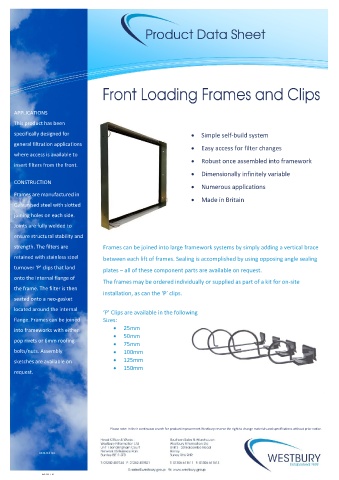

Page 66 - Westbury Filtermation Catalogue

APPLICATIONS
This product has been

specifically designed for • Simple self-build system
general filtration applications
• Easy access for filter changes
where access is available to
• Robust once assembled into framework
insert filters from the front.
• Dimensionally infinitely variable
CONSTRUCTION
• Numerous applications
Frames are manufactured in
• Made in Britain
Galvanised steel with slotted

joining holes on each side.
Joints are fully welded to
ensure structural stability and

strength. The filters are Frames can be joined into large framework systems by simply adding a vertical brace
retained with stainless steel between each lift of frames. Sealing is accomplished by using opposing angle sealing
turnover ‘P’ clips that land
plates – all of these component parts are available on request.
onto the internal flange of
The frames may be ordered individually or supplied as part of a kit for on-site
the frame. The filter is then
installation, as can the ‘P’ clips.
seated onto a neo-gasket

located around the internal
‘P’ Clips are available in the following
flange. Frames can be joined Sizes:
into frameworks with either • 25mm
• 50mm
pop rivets or 6mm roofing
• 75mm
bolts/nuts. Assembly • 100mm

sketches are available on • 125mm
• 150mm
request.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

DATA-FLF-001

Ref: DST-T-V1
