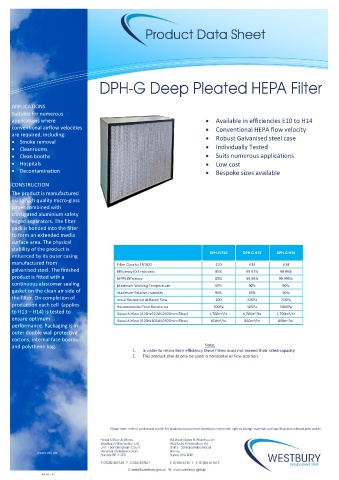

Page 39 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for numerous
applications where • Available in efficiencies E10 to H14
conventional airflow velocities • Conventional HEPA flow velocity
are required, including: • Robust Galvanised steel case
• Smoke removal
• Cleanrooms • Individually Tested
• Clean booths • Suits numerous applications
• Hospitals • Low cost
• Decontamination • Bespoke sizes available

CONSTRUCTION
The product is manufactured
using high quality micro-glass
paper combined with
corrugated aluminium safety
edged separators. The filter
pack is bonded into the filter
to form an extended media
surface area. The physical
stability of the product is
DPH-G E10 DPH-G H13 DPH-G H14
enhanced by its outer casing
manufactured from Filter Class to EN1822 E10 H13 H14
galvanised steel. The finished Efficiency (0.3 microns) 95% 99.97% 99.99%
product is fitted with a MPPS Efficiency 85% 99.95% 99.995%
continuous elastomer sealing Maximum Working Temperature 90 c 90 c 90 c
0
0
0
gasket on the clean air side of Maximum Relative Humidity 90% 90% 90%
the filter. On completion of
Initial Resistance at Rated Flow 200 250Pa 250Pa
production each cell (applies Recommended Final Resistance 500Pa 500Pa 5000Pa
to H13 – H14) is tested to Rated Airflow (610Hx610Wx292Dmm Filter) 1,700m /hr 1,700m /hr 1,700m /hr
3
3
3
ensure optimum
3
3
3
Rated Airflow (610Hx305Wx292Dmm Filter) 850m /hr 850m /hr 850m /hr
performance. Packaging is in
outer double wall protective
cartons, internal face boards
and polythene bag. Note:
1. In order to retain their efficiency these filters must not exceed their rated capacity

2. This product should only be used in horizontal airflow position

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-DPH-001

Ref: DST-T-V1
