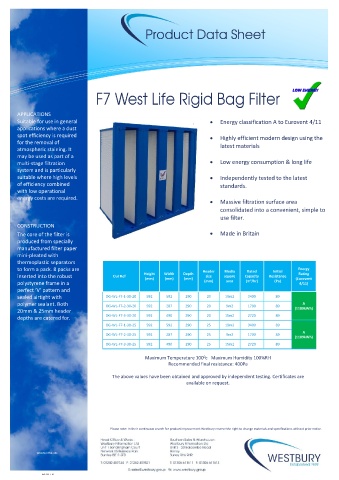

Page 34 - Westbury Filtermation Catalogue

APPLICATIONS
Suitable for use in general • Energy classification A to Eurovent 4/11
applications where a dust
spot efficiency is required • Highly efficient modern design using the
for the removal of latest materials
atmospheric staining. It
may be used as part of a
multi-stage filtration • Low energy consumption & long life
system and is particularly
suitable where high levels • Independently tested to the latest
of efficiency combined standards.
with low operational
energy costs are required. • Massive filtration surface area

consolidated into a convenient, simple to
use filter.
CONSTRUCTION
The core of the filter is • Made in Britain
produced from specially
manufactured filter paper
mini-pleated with
thermoplastic separators
to form a pack. 8 packs are Header Media Rated Initial Energy
Height Width Depth Rating
inserted into the robust Our Ref size square Capacity Resistance
(mm) (mm) (mm) (Eurovent
3
polystyrene frame in a (mm) area (m /hr) (Pa) 4/11)
perfect ‘V’ pattern and
sealed airtight with OG-WL-F7-1-30-20 592 592 290 20 19m2 3400 89
polymer sealant. Both A
OG-WL-F7-2-30-20 592 287 290 20 9m2 1700 89 (1189kWh)
20mm & 25mm header
depths are catered for. OG-WL-F7-3-30-20 592 490 290 20 15m2 2720 89
OG-WL-F7-1-30-25 592 592 290 25 19m2 3400 89
A
OG-WL-F7-2-30-25 592 287 290 25 9m2 1700 89
(1189kWh)
OG-WL-F7-3-30-25 592 490 290 25 15m2 2720 89

0
Maximum Temperature 100 c Maximum Humidity 100%RH
Recommended final resistance: 400Pa

The above values have been obtained and approved by independent testing. Certificates are
available on request.

The above values have been obtained and approved by independent testing.
Certificates are available on request.

Please note: In their continuous search for product improvement Westbury reserve the right to change materials and specifications without prior notice.
Doc

WDATA-F7RB-001

Ref: DST-T-V1
